Updating your AngularJS App

(without the tears)

@ErinJZimmer

AngularJS vs Angular

You should upgrade your app

You can upgrade your app

@ErinJZimmer

Google developer expert
Mozilla tech speaker

Angular 1.4
Embedded in JSP
Built with Maven
Hopeless mess

- suffered from similar problems to many legacy enterprise apps - devs whose experience isn't in JavaScript - incredibly common


$scope.parentCtrl.loadDataForSection = function (section) {
  ...
}


resp.data instanceof Object &&
  typeof resp.data.oamErrorCode != "undefined"

Problems

Security vulnerabilities
Bad developer experience

Security Vulnerabilities

Brad to business - data breaches & $$

Jenkins plugin Says Java, .NET on the website Finds JS dependencies though

npm audit

npm v6

6 high severity
31 medium severity
18 low severity

(just in JavaScript code) mostly XSS vulnerabilities & CSP bypasses, CORS requests able to run, HTML escaping tech lead presented to business about the risks of data breaches used a bunch of really scary numbers enough to make security our number one priority - NO MORE RELEASES UNTIL VULNS PATCHED! which was nice in theory

Improved Security

💰

how did we convince business?

Node/NPM
AngularJS
All dependencies

Node to 8/6, mostly so we could get the latest tools AngularJS to 1.7 dependencies to the latest we could - there were some limitations THE most difficult thing we did. Took several months.

APIs change.

Especially if you don't update for four years

<datepicker
  ng-model="objDate"
  starting-day="1"
  format-month="MMM"
  show-weeks="false"
  min-date="minDate"
  max-date="maxDate"
  data-datepickertype="inline">
</datepicker>

<div
  uib-datepicker
  ng-model="$ctrl.date"
  datepicker-options="$ctrl.opts">
</div>

0.13.3 of bootstrap => 2.5.6 much stuffing around

Good tests are essential

test behaviour not implementation need to know what your app is trying to achieve, not the steps it took to get there

it('should add a new phone number', () => {
 const phone = { type: 'MOBILE', number: '0412345678' }
 ctrl.addPhoneNumber(phone);

 expect(ctrl.updatePhoneTypeToSelect).toHaveBeenCalled();
 expect(ctrl.setPhoneNumberLabel).toHaveBeenCalled();
});


expect(ctrl.func1).toHaveBeenCalled();
expect(ctrl.func2).toHaveBeenCalled();

expect(ctrl.phoneTypes).toContain('MOBILE');
expect(phone.label).toBe('Mobile (2)');

- things are still going to break when the external APIs change but at least you'll know what your app was trying to achieve rather than just what it was doing

The bad news

Realistically, though, upgrading the dependencies of a very old app is going to be hard Take a lot of effort. Stuff will be missing/broken. Having good tests will help, but it's going to be hard to right them retroactively. Upgrading a library at a time _might_ help (we did everything at once), but often dependency chains are going to make that impossible

The good news

You don't really need to keep everything up to date You can stop this from happening to the next devs (or yourself in the future)

Break the build
for
security vulnerabilities

we do it using the dependency check plugin mentioned earlier but there's an even easier way

Terrible Developer Experience

Can't have a good app if we don't have good devs Can't get (and keep) good devs if they have to work on a pile of shit


var premiseLocation = null;
angular.forEach(this.accounts,
 angular.bind(this, function (location) {
  angular.forEach(
   location.accounts,
   angular.bind(this, function(account) {
    if (account.number == this.accountId) {
      premiseLocation = location;
    }
   })
  );
 })
);

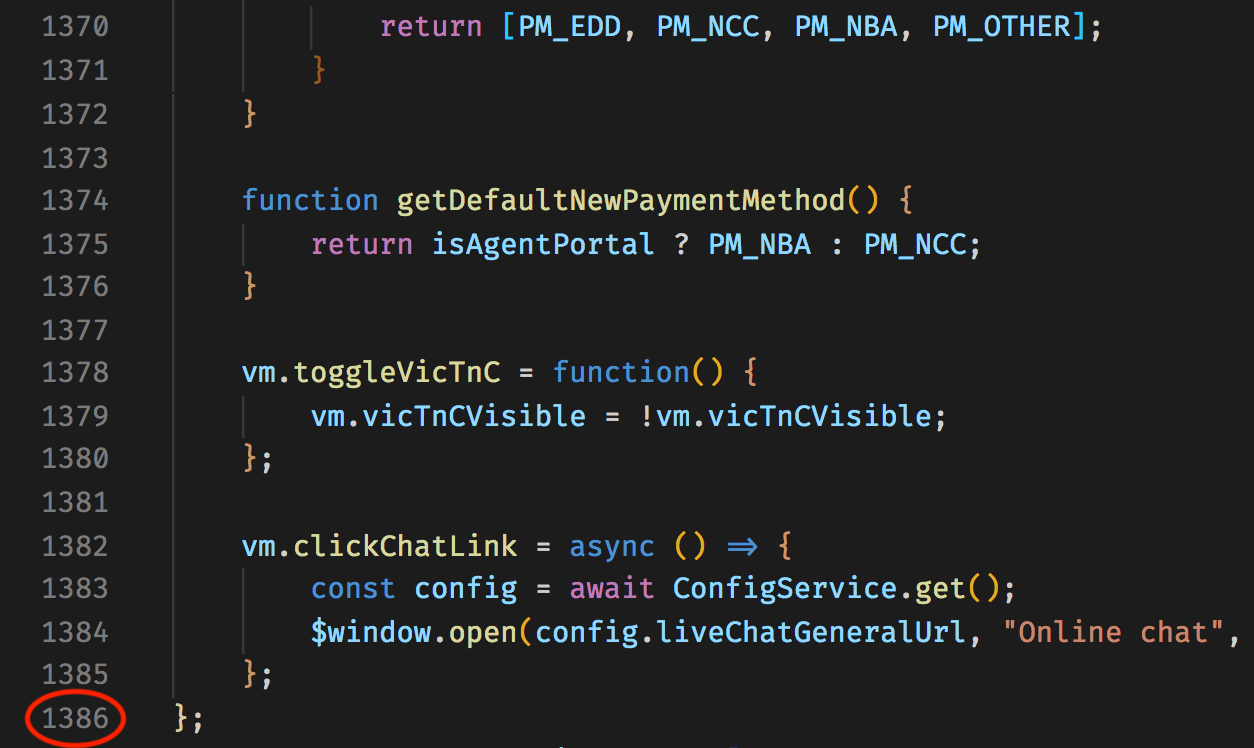

code base is incredibly dated


var modules = [
 modulesPath + "jquery/dist/jquery.js",
 modulesPath + "autofill-event/autofill-event.js",
 modulesPath + "angular/angular.js",
 modulesPath + "bootstrap/dist/js/bootstrap.min.js",
 modulesPath + "d3/d3.min.js",
 modifiedModulesPath + "angular-payments/lib/angular-payments.min.js",
 modifiedModulesPath + "nvd3/build/nv.d3.js",
 modulesPath + "angular-animate/angular-animate.js",
 modulesPath + "angular-aria/angular-aria.js",
 modulesPath + "angular-ui-bootstrap/ui-bootstrap-tpls.js",
 modulesPath + "angular-cookies/angular-cookies.js",
 modulesPath + "angular-nvd3/dist/angular-nvd3.js",
 modulesPath + "angular-sanitize/angular-sanitize.js",
 modulesPath + "angular-shims-placeholder/dist/angular-shims-placeholder.js",
 modulesPath + "angular-touch/angular-touch.js",
 modulesPath + "angular-ui-router-breadcrumbs/dist/angular-ui-router-breadcrumbs.js",
 modulesPath + "angular-ui-router/release/angular-ui-router.js",
 modulesPath + "matchmedia-ng/matchmedia-ng.js",
 modulesPath + "matchmedia-polyfill/matchMedia.addListener.js",
 modulesPath + "matchmedia-polyfill/matchMedia.js",
 modulesPath + "moment/min/moment.min.js",
 modulesPath + "ng-csv/build/ng-csv.js",
 modulesPath + "ng-idle/angular-idle.js",
 modulesPath + "ng-joyride/ng-joyride.js",
 modulesPath + "spin.js/spin.js",
];

- manual gulp build instead of proper dependency management - single angular module, so it doesn't matter what order all the JS is imported - made testing in isolation hard, but nothing in the app was isolated anyway


app|develop ⇒ ls components
_components.scss               card-mask
accessible                     checkbox                       is-desktop
accordion-panel                concession-card                is-logged-in
account-balance                confirmation-modal             life-support
account-heading                constants                      link
account-holders                contact-details                live-chat
account-payment-plan           creditcard-type                location-state
account-premise-trim           currency                       logging
account-select                 date-entry                     login
account-type                   date-range-filter              login-form
accounts                       device-detection               logout
address-concat                 direct-debit                   maintenance
address-input                  direct-debit-form              max-value
admin                          direct-debit-form-rpo          mhbills
agent                          double-click                   min-value
anchor-smooth-scroll           eaexpiry-filter                movers
authorization-http-interceptor error-http-interceptor         now
autofill-event                 events                         oam
bill-header                    federation                     omniture
blank-string-filter            fibre                          password-reset
bundle                         filtered-dropdown              payment
button-with-icon               focus-input                    phone-number-input
calendar-countdown             form-submit                    phone-numbers
capitalize                     forms                          plan-details
carbon-neutral                 icon                           profile

Everything in global state 🌏

Better Developer Experience

🏗️Move to modern framework🏗️
🔥Burn the old codebase in a fire 🔥

You should be looking at a path away from AngularJS altogether as it will go out of support 30/6/2021. which is not as far away as it sounds.

-- considered other frameworks -- obvious upgrade path -- lots of other apps in Angular, share resources -- devs not experienced in JS

ngUpgrade

-- allows you to run AngularJS and Angular code side-by-side -- diagram/description of how it works in longer talk maybe -- relatively straightforward, if you're coming from a modern codebase -- if you're doing it now, you're probably not coming from a modern codebase so there are some things you need to be aware of

Preparation

Follow the AngularJS Style Guide
Use a Module Loader
Migrate to TypeScript
Use Component Directives

Tidying Up

-- the most straightforward bit

Valid HTML
Strict dependency injection

<div class="section-icon-circle"/>

-- might seem obvious, but we didn't do this -- for some reason - heaps of self-closing div tags, not valid -- took me ages to work out what Angular was complaining about

Valid HTML
Strict dependency injection

Angular dependency injection requires that you pass the name of your dependencies


var myService = function ($http, $q) {
	...
}

var x=function(a,b){ ... }


var myService = ['$http', '$q',
 function ($http, $q) { ... }
];

-- this turns out to be quite tedious, so some clever person came up with a way to do it automatically

ng-annotate

-- problem is, this tool is now deprecated, and there isn't an obvious replacement -- there is a webpack loader, but it doesn't work nicely with Angular CLI


						find . -type f -iname '*.js'
						 -exec ng-annotate
						-a {}
						 -o {}
						 \;


var myService = ['$http', '$q',
 function ($http, $q) { ... }
];

-- this turns out to be quite tedious, so some clever person came up with a way to do it automatically

Switching to TypeScript

-- use tsc or Angular CLI -- CLI is less work overall, but has to be done kind of in one big chunk -- setup steps are the same either way

Setup ES Modules


var modules = [
 modulesPath + "jquery/dist/jquery.js",
 modulesPath + "autofill-event/autofill-event.js",
 modulesPath + "angular/angular.js",
 modulesPath + "bootstrap/dist/js/bootstrap.min.js",
 modulesPath + "d3/d3.min.js",
 modifiedModulesPath + "angular-payments/lib/angular-payments.min.js",
 modifiedModulesPath + "nvd3/build/nv.d3.js",
 modulesPath + "angular-animate/angular-animate.js",
 modulesPath + "angular-aria/angular-aria.js",
 modulesPath + "angular-ui-bootstrap/ui-bootstrap-tpls.js",
 modulesPath + "angular-cookies/angular-cookies.js",
 modulesPath + "angular-nvd3/dist/angular-nvd3.js",
 modulesPath + "angular-sanitize/angular-sanitize.js",
 modulesPath + "angular-shims-placeholder/dist/angular-shims-placeholder.js",
 modulesPath + "angular-touch/angular-touch.js",
 modulesPath + "angular-ui-router-breadcrumbs/dist/angular-ui-router-breadcrumbs.js",
 modulesPath + "angular-ui-router/release/angular-ui-router.js",
 modulesPath + "matchmedia-ng/matchmedia-ng.js",
 modulesPath + "matchmedia-polyfill/matchMedia.addListener.js",
 modulesPath + "matchmedia-polyfill/matchMedia.js",
 modulesPath + "moment/min/moment.min.js",
 modulesPath + "ng-csv/build/ng-csv.js",
 modulesPath + "ng-idle/angular-idle.js",
 modulesPath + "ng-joyride/ng-joyride.js",
 modulesPath + "spin.js/spin.js",
];

-- remember our gulpfile from before, that concatenated all our dependencies manually? -- not going to cut it with TypeScript - we want all this stuff managed automatically using ES modules -- good news: code doesn't need to be written as ES modules to be imported as ES modules


import 'angular';
import 'jquery';
import 'matchmedia-ng';
import 'angular-shims-placeholder';
import 'angular-animate';
import 'angular-sanitize';
import 'angular-touch';
import 'angular-aria';
import 'angular-cookies';
import 'ng-csv';
import 'ng-idle';
import 'ng-joyride';

-- use import 'module-name' syntax to import all your node module dependencies -- don't know of any easy way to automate this as node-modules aren't consistent in naming -- IDE might autocomplete for you -- hopefully you don't have too many dependencies... -- we were lucky - almost all our dependencies were dependencies of our single Angular module -- also need to import all your app files


import './components/carbon-neutral/carbon-neutral-service';
import './components/omniture/omniture-service';
import './components/max-value/max-value-directive';
import './components/login-form/login-form-directive';
import './components/form-submit/form-create-submit-directive';
import './components/form-submit/form-submit-directive';
import './components/show-back-button/show-back-button-service';
import './components/date-entry/date-entry-directive';
import './components/eaexpiry-filter/eaexpiry';
import './components/calendar-countdown/calendar-countdown-directive';
import './components/scroll-to-top/scroll-to-top-service';

-- exactly the same approach, except this time it is automatable, because you want to include all your JavaScript files (except test files, and you've used a sensible naming convention for those, of course)


						find . -type f -iname '*.js'
						! -iname '*_test.js'

						> legacy-imports.js

find & replace regex or multicursor or whatever in IDE -- demo!


./components/carbon-neutral/carbon-neutral-service
./components/omniture/omniture-service
./components/max-value/max-value-directive
./components/login-form/login-form-directive
./components/form-submit/form-create-submit-directive
./components/form-submit/form-submit-directive
./components/show-back-button/show-back-button-service
./components/date-entry/date-entry-directive
./components/eaexpiry-filter/eaexpiry
./components/calendar-countdown/calendar-countdown-directive
./components/scroll-to-top/scroll-to-top-service


import './components/carbon-neutral/carbon-neutral-service';
import './components/omniture/omniture-service';
import './components/max-value/max-value-directive';
import './components/login-form/login-form-directive';
import './components/form-submit/form-create-submit-directive';
import './components/form-submit/form-submit-directive';
import './components/show-back-button/show-back-button-service';
import './components/date-entry/date-entry-directive';
import './components/eaexpiry-filter/eaexpiry';
import './components/calendar-countdown/calendar-countdown-directive';
import './components/scroll-to-top/scroll-to-top-service';


import 'angular';
import 'jquery';
import 'matchmedia-ng';
import 'angular-shims-placeholder';
import 'angular-animate';
import 'angular-sanitize';
import 'angular-touch';
import 'angular-aria';
import 'angular-cookies';
import 'ng-csv';
import 'ng-idle';
import 'ng-joyride';

import './components/carbon-neutral/carbon-neutral-service';
import './components/omniture/omniture-service';
import './components/max-value/max-value-directive';
import './components/login-form/login-form-directive';
import './components/form-submit/form-create-submit-directive';
import './components/form-submit/form-submit-directive';
import './components/show-back-button/show-back-button-service';
import './components/date-entry/date-entry-directive';
import './components/eaexpiry-filter/eaexpiry';
import './components/calendar-countdown/calendar-countdown-directive';
import './components/scroll-to-top/scroll-to-top-service';

Create App Entry Point

app.js

angular.module('selfService',
  [ 'ui-bootstrap', ... ]);


		import 'angular';
		import 'jquery';
		import 'matchmedia-ng';
		import 'angular-shims-placeholder';
		import 'angular-animate';
		import 'angular-sanitize';
		import 'angular-touch';
		import 'angular-aria';
		import 'angular-cookies';
		import 'ng-csv';
		import 'ng-idle';
		import 'ng-joyride';

		import './app.js';

		import './components/carbon-neutral/carbon-neutral-service';
		import './components/omniture/omniture-service';
		import './components/max-value/max-value-directive';
		import './components/login-form/login-form-directive';
		import './components/form-submit/form-create-submit-directive';
		import './components/form-submit/form-submit-directive';
		import './components/show-back-button/show-back-button-service';
		import './components/date-entry/date-entry-directive';
		import './components/eaexpiry-filter/eaexpiry';
		import './components/calendar-countdown/calendar-countdown-directive';
		import './components/scroll-to-top/scroll-to-top-service';

		export const legacyApp = angular.module('selfService');

Angular CLI

ng new myApp

-- in a normal setup, ng new and away - follow process from previous meet-ups -- our app is a Maven app

-- app-name
  -- package.json
  -- src
    -- main
      -- java
      -- webapp
        -- Angular app
    -- test

Angular CLI project structure
is configurable... kind of

"self-service-app": {
 "root": "",
 "sourceRoot": "self-service-app/src/main/webapp/src",
 "projectType": "application",
 "prefix": "app",
 "schematics": {},
 "targets": {
  "build": {
    "builder": "@angular-devkit/build-angular:browser",
    "options": {
      "outputPath": "self-service-app/src/main/webapp/dist/self-service-app",
      "index": "self-service-app/src/main/webapp/src/index.html",
      "main": "self-service-app/src/main/webapp/src/main.ts",
      "polyfills": "self-service-app/src/main/webapp/src/polyfills.ts",
      "tsConfig": "self-service-app/src/main/webapp/src/tsconfig.app.json",
      "assets": [
        "self-service-app/src/main/webapp/src/favicon.ico",
        "self-service-app/src/main/webapp/src/assets",
        "self-service-app/src/main/webapp/src/reference-data"
      ],
      "styles": ["self-service-app/src/main/webapp/src/styles.scss"],

angular.json can update it

ng generate component myNewComponent

At this point, you can just follow the standard Angular upgrade instructions.

upgrade as usual...

Writing Angular

check the documentation for how to actually do it

Angular component in AngularJS
AngularJS service in Angular
Angular service in AngularJS
AngularJS directive in Angular

angular.component('my-legacy-component',
			function () {...})

restrict: 'E'
controller & template
isolate scope
bindToController
NO compile or link

The future

So we've moved to a new framework, how are we planning to burn the old codebase in a fire?

microfrontends

Hybrid app

Nx app

Hybrid app

Nx app

🏗️Move to modern framework🏗️
🔥Burn the old codebase in a fire 🔥

💩 -> 🎉💃💃💃🎉

4 months

also developing new features at the same time

Lessons learned

Write good tests
A stitch in time...
There is hope!

even horrible apps can be fixed everything will be legacy one day - put in the extra effort now

You should be looking at a path away from AngularJS altogether as it will go out of support 30/6/2021. which is not as far away as it sounds.

ng-upgrade.ez.codes

@ErinJZimmer

Updating your AngularJS App

You should upgrade your app

You can upgrade your app

Problems

Security Vulnerabilities

Improved Security

Good tests are essential

The bad news

The good news

Break the build for security vulnerabilities

Terrible Developer Experience

Better Developer Experience

Preparation

Tidying Up

Switching to TypeScript

Setup ES Modules

Create App Entry Point

Angular CLI

upgrade as usual...

Writing Angular

The future

microfrontends

Hybrid app

Nx app

Hybrid app

Nx app

4 months

Lessons learned

Break the build
for
security vulnerabilities
